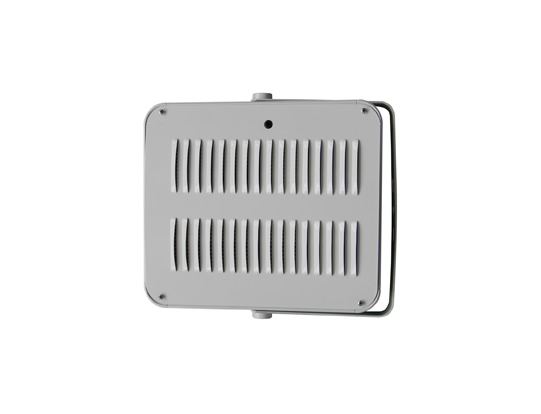

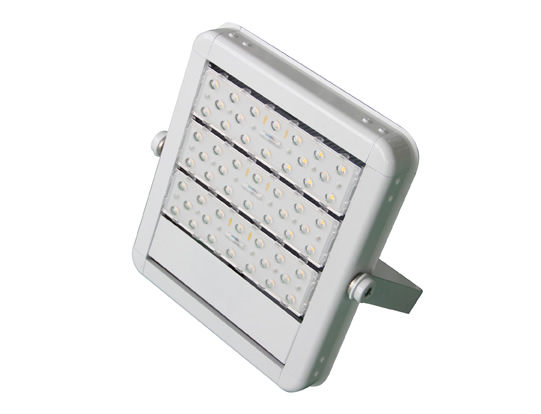

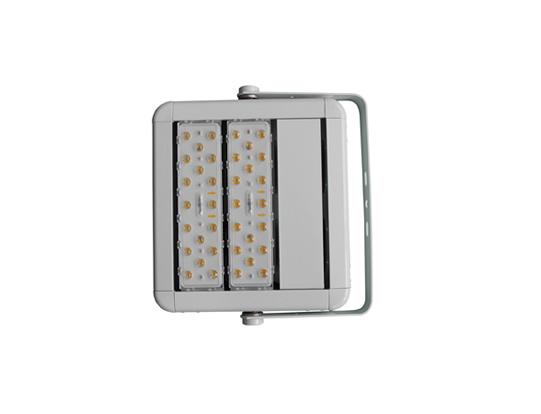

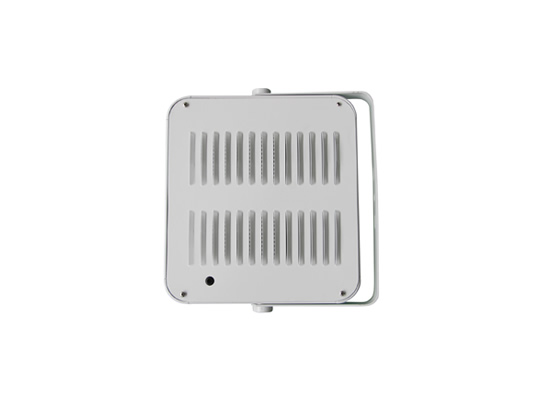

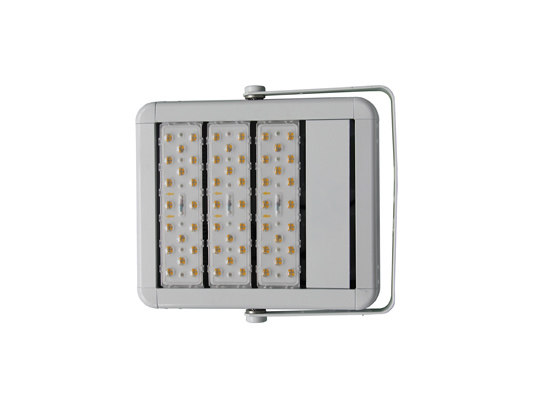

Product description

1、Modular pluggable technology, which is simple for tool maintenance;

2、High efficiency heat dissipation performance, with maximum power of single module of 70W;

3、IP65 protection to meet outdoor protection requirements;

4、Patent packaging of imported high-efficiency chips which can save 60% of energy than traditional street lamps;

5、Professional light distribution design, with the uniformity of the road surface of more than 0.7, and the illumination is uniform without spot;

6、LED is mercury-free, ultraviolet-free, radiation-free, and more conducive to environmental protection and human eye health;

7、The installation angle is adjustable and suitable for various installation modes。


Technical parameter

Input voltageFrequency rangePower factorChromogenic indexWorking environment temperatureHumidity of working environmentLED LIFEProtection LevelColor temperatureInstallation hole spacing
AC90-305V50/60HzPF>0.95Ra>70-30-50℃10-90%50000hIP653000-6000K75mm


Product ModelPowerNumber of LEDIntegral lighting effectElectric currentLuminous fluxNet weightGross weightSize
R1T2-1-3030W36130Lm/W700mA3900Lm2.2KG3.2KG300*400*65mm
R1T2-2-6060W72130Lm/W700mA7800Lm3.1KG4.1KG370*400*65mm
R1T2-3-9090W108130Lm/W700mA11700Lm3.7KG4.7KG440*400*65mm
R1T2-4-120120W144130Lm/W700mA15600Lm4.4KG5.9KG515*400*65mm
R1T2-5-150150W180130Lm/W700mA19500Lm5KG6.5KG620*400*65mm
R2T2-1-3030W49120Lm/W600mA3600Lm2.7KG3.7KG300*400*65mm
R2T2-1-5050W49120Lm/W1050mA6000Lm3.0KG4.0KG300*400*65mm
R2T2-1-7070W70120Lm/W1050mA8400Lm3.1KG4.1KG300*400*65mm
R2T2-2-8080W98120Lm/W860mA9600Lm4.2KG5.2KG370*400*65mm
R2T2-2-100100W98120Lm/W1050mA12000Lm4.3KG5.3KG370*400*65mm
R2T2-2-120120W140120Lm/W910mA14400Lm4.5KG5.5KG370*400*65mm
R2T2-3-150150W147120Lm/W1050mA18000Lm5.9KG7.4KG440*400*65mm
R2T2-3-180180W189120Lm/W1050mA21600Lm6.0KG7.5KG440*400*65mm
R2T2-3-200200W210120Lm/W1050mA24000Lm6.1KG7.6KG440*400*65mm
R2T2-4-200200W196120Lm/W1050mA24000Lm7.5KG9.0KG515*400*65mm
R2T2-4-240240W252120Lm/W1050mA28800Lm7.7KG9.2KG515*400*65mm
R2T2-4-280280W280120Lm/W1050mA33600Lm8.1KG9.6KG515*400*65mm
R2T2-5-250250W245120Lm/W1050mA30000Lm9.4KG10.9KG620*400*65mm
R2T2-5-300300W315120Lm/W1050mA36000Lm9.7KG11.2KG620*400*65mm
R2T2-5-320320W350120Lm/W1050mA38400Lm9.8KG11.3KG620*400*65mm


Light distribution curve
