Light distribution curve

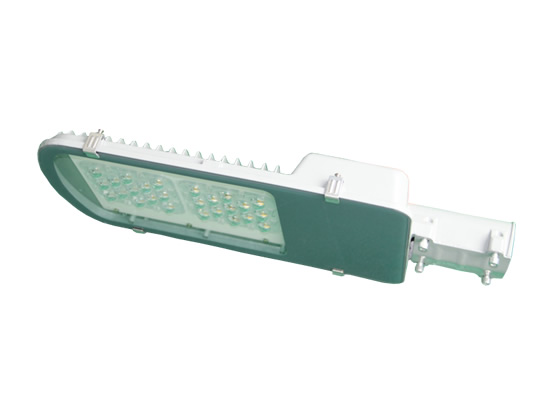

Product description
1、The size and shape of the series of light panels can be customized；
2、 It is cost-effective to be used with traditional street lamp housing；
3、IP65 protection to meet outdoor protection requirements；
4、Patent packaging of imported high-efficiency chips which can save 60% of energy than traditional street lamps；
5、Professional light distribution design, with the uniformity of the road surface of more than 0.7, and the illumination is uniform without spot；
6、LED is mercury-free, ultraviolet-free, radiation-free, and more conducive to environmental protection and human eye health；
7、Applicable places: expressway, main road, sub-main road, branch road, etc；
Technical parameter
| Input voltage | Frequency range | Power factor | Chromogenic index | Working environment temperature | Humidity of working environment | LED Life | Protection Level | Color temperature | Connection size |
| AC90-305V | 50/60Hz | PF＞0.95 | Ra＞70 | -30-50℃ | 10-90% | 50000h | IP65 | 3000-6000K | 60mm |
| Product Model | Power | Number of LED | Integral lighting effect | Electric current | Luminous flux | Net weight | Gross weight | Size |
| QSA-30 | 30W | 30 | 100Lm/W | 700mA | 3000Lm | 3.2 | 4.2 | 495*217*75 |
| QSA-40 | 40W | 35 | 100Lm/W | 820mA | 4000Lm | 3.2 | 4.2 | 495*217*75 |
| QSA-50 | 50W | 45 | 100Lm/W | 800mA | 5000Lm | 3.6 | 4.6 | 495*217*75 |
| QSA-60 | 60W | 50 | 100Lm/W | 860mA | 6000Lm | 3.6 | 4.6 | 495*217*75 |
| QMA-80 | 80W | 70 | 100Lm/W | 820mA | 8000Lm | 5.3 | 6.3 | 616*276*80 |
| QMA-90 | 90W | 90 | 100Lm/W | 780mA | 9000Lm | 5.4 | 6.4 | 616*276*80 |
| QMA-100 | 100W | 90 | 100Lm/W | 800mA | 10000Lm | 5.4 | 6.4 | 616*276*80 |
| QMA-120 | 120W | 100 | 100Lm/W | 860mA | 12000Lm | 5.6 | 6.6 | 616*276*80 |
