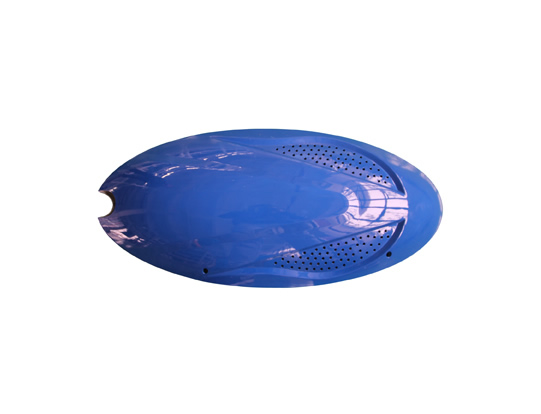

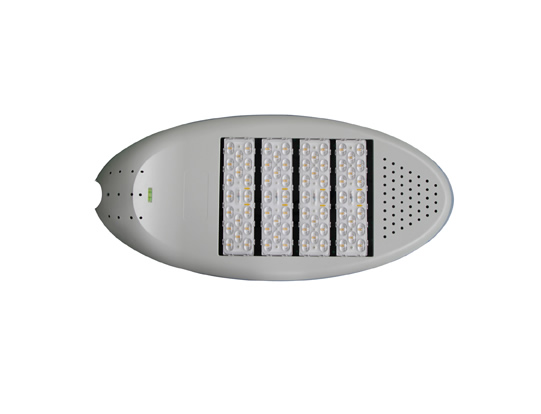

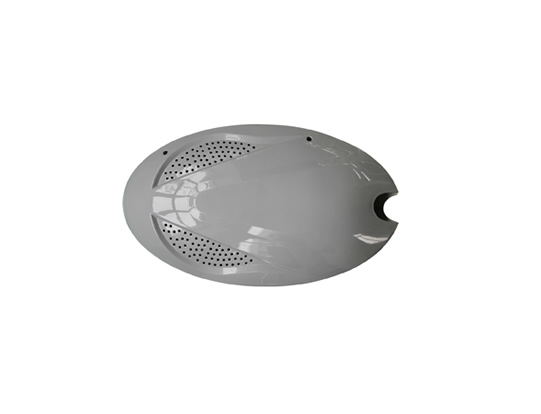

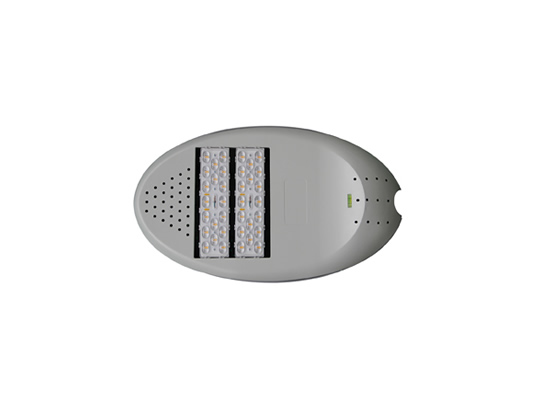

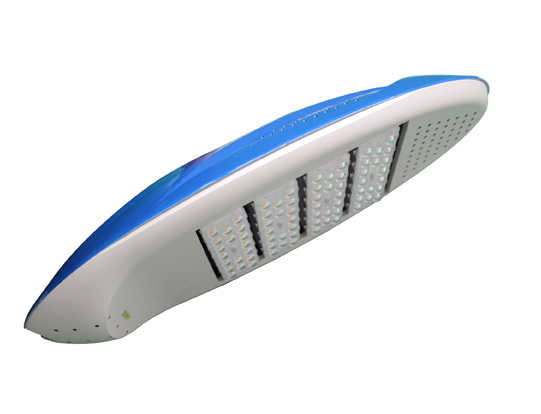

Shape size
Product description
1、Modular pluggable technology, which is simple for tool maintenance；
2、High efficiency heat dissipation performance, with maximum power of single module of 70W;
3、IP66 protection to meet outdoor protection requirements；
4、Patent packaging of imported high-efficiency chips which can save 60% of energy than traditional street lamps；
5、Professional light distribution design, with the uniformity of the road surface of more than 0.7, and the illumination is uniform without spot；
6、 LED is mercury-free, ultraviolet-free, radiation-free, and more conducive to environmental protection and human eye health；
7、Applicable places: expressway, main road, sub-main road, branch road, etc；
Technical parameter
| Input voltage | Frequency range | Power factor | Chromogenic index | Working environment temperature | Humidity of working environment | LED Life | Protection Level | Color temperature | Connection size |
| AC90-305V | 50/60Hz | PF＞0.95 | Ra＞70 | -30-50℃ | 10-90% | 50000h | IP65 | 3000-6000K | 60mm |
| Product Model | Power | Number of LED | Integral lighting effect | Electric current | Luminous flux | Net weight | Size |
| R1D-1-30 | 30W | 36 | 130Lm/W | 700mA | 3900Lm | 4.1KG | 675*400*165mm |
| R1D-2-60 | 60W | 72 | 130Lm/W | 700mA | 7800Lm | 4.8KG | 675*400*165mm |
| R1D-3-90 | 90W | 108 | 130Lm/W | 700mA | 11700Lm | 6.3KG | 855*400*165mm |
| R1D-4-120 | 120W | 144 | 130Lm/W | 700mA | 15600Lm | 6.9KG | 855*400*165mm |
| R2D-1-30 | 30W | 49 | 120Lm/W | 600mA | 3600Lm | 4.6KG | 675*400*165mm |
| R2D-1-50 | 50W | 49 | 120Lm/W | 1050mA | 6000Lm | 5KG | 675*400*165mm |
| R2D-1-70 | 70W | 70 | 120Lm/W | 1050mA | 8400Lm | 5.1KG | 675*400*165mm |
| R2D-2-80 | 80W | 98 | 120Lm/W | 860mA | 9600Lm | 6KG | 675*400*165mm |
| R2D-2-100 | 100W | 98 | 120Lm/W | 1050mA | 12000Lm | 6KG | 675*400*165mm |
| R2D-2-120 | 120W | 140 | 120Lm/W | 910mA | 14400Lm | 6.2KG | 675*400*165mm |
| R2D-3-150 | 150W | 147 | 120Lm/W | 1050mA | 18000Lm | 8KG | 855*400*165mm |
| R2D-3-180 | 180W | 189 | 120Lm/W | 1050mA | 21600Lm | 8.2KG | 855*400*165mm |
| R2D-3-200 | 200W | 210 | 120Lm/W | 1050mA | 24000Lm | 8.3KG | 855*400*165mm |
| R2D-4-200 | 200W | 196 | 120Lm/W | 1050mA | 24000Lm | 9.1KG | 855*400*165mm |
| R2D-4-240 | 240W | 252 | 120Lm/W | 1050mA | 28800Lm | 9.2KG | 855*400*165mm |
| R2D-4-280 | 280W | 280 | 120Lm/W | 1050mA | 33600Lm | 9.6KG | 855*400*165mm |
Light distribution curve
