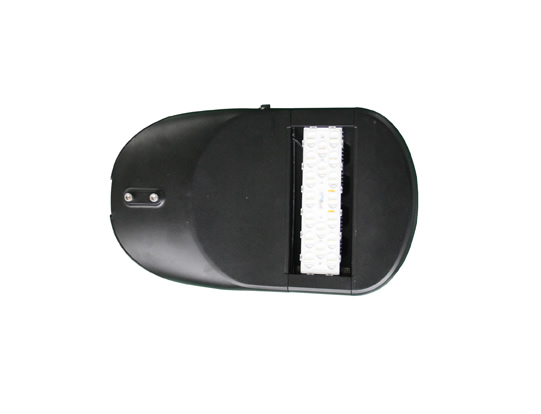

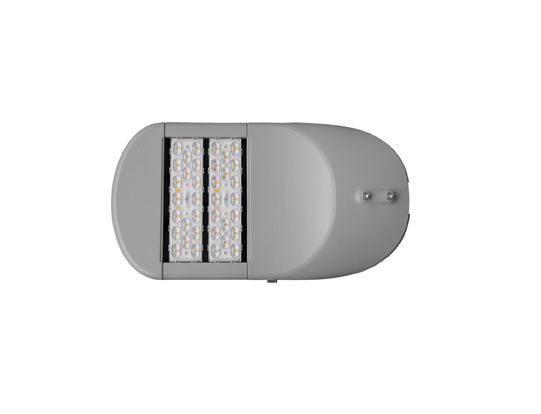

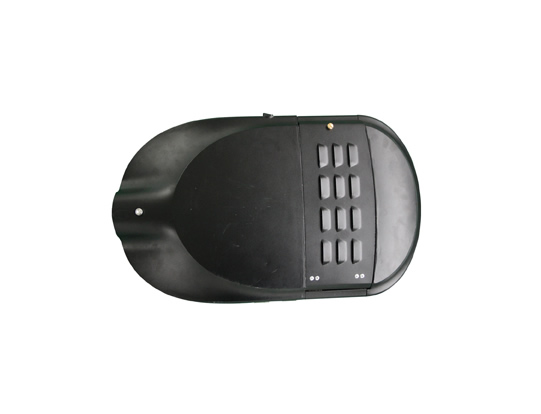

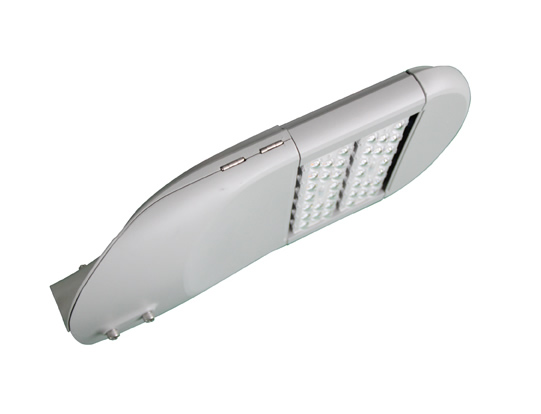

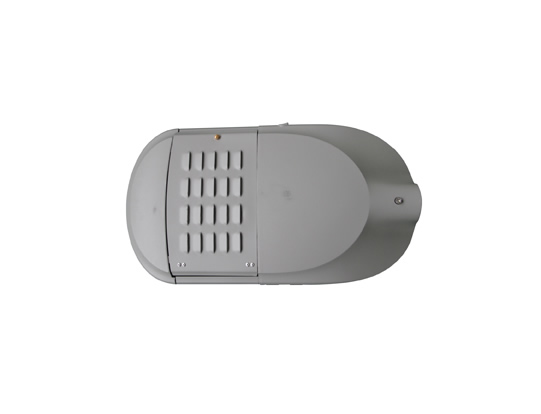

Product description
1、Modular pluggable technology, which is simple for tool maintenance；
2、High efficiency heat dissipation performance, with maximum power of single module of 70W;
3、IP66 protection to meet outdoor protection requirements；
4、Patent packaging of imported high-efficiency chips which can save 60% of energy than traditional street lamps；
5、Professional light distribution design, with the uniformity of the road surface of more than 0.7, and the illumination is uniform without spot；
6、LED is mercury-free, ultraviolet-free, radiation-free, and more conducive to environmental protection and human eye health；
7、Applicable places: expressway, main road, sub-main road, branch road, etc；
Technical parameter
| Input voltage | Frequency range | Power factor | Chromogenic index | Working environment temperature | Humidity of working environment | LED Life | Protection Level | Color temperature | Connection size |
| AC90-305V | 50/60Hz | PF＞0.95 | Ra＞70 | -30-50℃ | 10-90% | 50000h | IP65 | 3000-6000K | 60mm |
| Product Model | Power | Number of LED | Integral lighting effect | Electric current | Luminous flux | Net weight | Gross weight | Size |
| R1C-1-30 | 30W | 36 | 130Lm/W | 700mA | 3900Lm | 6.1KG | 7.1KG | 580*345*135mm |
| R2C-1-30 | 30W | 49 | 120Lm/W | 600mA | 3600Lm | 6.6KG | 7.6KG | 580*345*135mm |
| R2C-1-50 | 50W | 49 | 120Lm/W | 1050mA | 6000Lm | 7KG | 8KG | 580*345*135mm |
| R2C-1-70 | 70W | 70 | 120Lm/W | 1050mA | 8400Lm | 7.1KG | 8.1KG | 580*345*135mm |
| R1C-2-60 | 60W | 72 | 130Lm/W | 700mA | 7800Lm | 7.2KG | 8.2KG | 640*345*135mm |
| R2C-2-80 | 80W | 98 | 120Lm/W | 860mA | 9600Lm | 8.4KG | 9.4KG | 640*345*135mm |
| R2C-2-100 | 100W | 98 | 120Lm/W | 1050mA | 12000Lm | 8.5KG | 9.5KG | 640*345*135mm |
| R2C-2-120 | 120W | 140 | 120Lm/W | 910mA | 14400Lm | 8.7KG | 9.7KG | 640*345*135mm |
| R1C-3-90 | 90W | 108 | 130Lm/W | 700mA | 11700Lm | 8.2KG | 9.7KG | 730*345*135mm |
| R2C-3-150 | 150W | 147 | 120Lm/W | 1050mA | 18000Lm | 10KG | 11.5KG | 730*345*135mm |
| R2C-3-180 | 180W | 189 | 120Lm/W | 1050mA | 21600Lm | 10.1KG | 11.6KG | 730*345*135mm |
| R2C-3-200 | 200W | 210 | 120Lm/W | 1050mA | 24000Lm | 10.2KG | 11.7KG | 730*345*135mm |
| R1C-4-120 | 120W | 144 | 130Lm/W | 700mA | 15600Lm | 9.3KG | 10.8KG | 810*345*135mm |
| R2C-4-200 | 200W | 196 | 120Lm/W | 1050mA | 24000Lm | 11.6KG | 13.1KG | 810*345*135mm |
| R2C-4-240 | 240W | 252 | 120Lm/W | 1050mA | 28800Lm | 11.7KG | 13.2KG | 810*345*135mm |
| R2C-4-280 | 280W | 280 | 120Lm/W | 1050mA | 33600Lm | 12.1KG | 13.6KG | 810*345*135mm |
| R1C-5-150 | 150W | 180 | 130Lm/W | 700mA | 19500Lm | 10.2KG | 11.7KG | 890*345*135mm |
| R2C-5-250 | 250W | 245 | 120Lm/W | 1050mA | 30000Lm | 13.1KG | 14.6KG | 890*345*135mm |
| R2C-5-300 | 300W | 315 | 120Lm/W | 1050mA | 36000Lm | 13.4KG | 14.9KG | 890*345*135mm |
| R2C-5-320 | 320W | 350 | 120Lm/W | 1050mA | 38400Lm | 13.5KG | 15KG | 890*345*135mm |
Light distribution curve
